Bad air can ruin good paint.
You can buy the right primer, mix your basecoat correctly, set your gun, and still end up fighting fisheyes, moisture spots, cloudy clear, or a finish that just does not lay down right. Sometimes the problem is not your hand, the product, or the spray gun.
It is the air feeding the whole setup.
A clean, dry, steady air supply is one of the quiet heroes of a full custom paint job. Nobody gets excited about plumbing air lines across the garage until the gun sprays cleaner, the finish lays smoother, and water stops spitting into the job like it was invented.
If you are planning an air compressor setup for spray painting, here is how to build the layout before you pull the trigger.
The Big Idea: Your Air Needs Time to Cool Down
Compressed air gets hot. Hot air holds moisture. As that air travels through the line and cools, moisture turns into water. If your setup does not give that water a place to drop out before it reaches the spray gun, it can end up in your paint job.
That is why clean air is not just about adding one tiny filter at the gun and hoping for the best. You need distance, cooling, draining, and filtration.
A strong DIY auto paint air line layout gives moisture time to separate from the air before it reaches your gun. Think of it like setting up an obstacle course for water. The goal is to make moisture drop out before it gets anywhere near your finish.
Stop 1: The Compressor
Your compressor is the starting point, so make sure it can keep up with the spray gun you are using. Check the gun’s CFM requirement and compare it with the compressor’s output. If the compressor is too small, pressure may drop while spraying, which can affect atomization and coverage.
Drain the compressor tank regularly. This is one of the simplest ways to reduce moisture problems, and it is also one of the easiest steps to forget.
If you are wondering how to keep water out of a spray gun, start here. A tank full of moisture makes the rest of the system work harder.
Stop 2: The First Air Line Run
Do not connect the spray gun right next to the compressor if you can avoid it.
The air coming straight out of the compressor is hot and moisture-heavy. Give it a run of air so it can cool before reaching your filter or dryer. Many painters use hard line or quality air hose to create distance between the compressor and the first moisture control point.

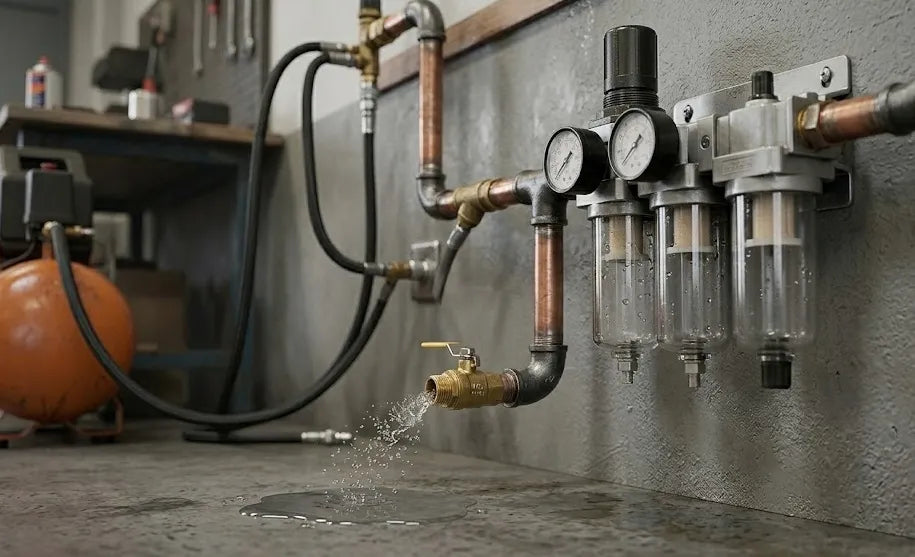

A good air compressor setup for spray painting often includes a line that rises up from the compressor, runs across the wall, then drops down into a drain leg before reaching the separator. This gives water a chance to fall out of the air stream instead of moving straight toward the gun.
Stop 3: Drain Legs
Drain legs are simple, but they matter.
A drain leg is a downward section of pipe or hose where water can collect. Instead of letting moisture continue through the air line, the layout encourages it to drop into the leg. Then you drain it before spraying.
For a smart DIY auto paint air line layout, use drain legs before your filtration setup and anywhere moisture may collect. Put valves at the bottom so releasing water is simple.
Do not make the system annoying to maintain. If draining it is a pain, you will skip it. And if you skip it, the water wins.
Stop 4: Water Separator and Dryer
This is where the setup starts getting serious.
An automotive paint water separator dryer helps remove moisture from the air before it reaches your spray gun. A basic water separator catches liquid water. A dryer can help remove finer moisture from the air stream, depending on the type you use.
For primer, basecoat, and clear coat, clean dry air matters. Moisture can create defects that are frustrating to fix and even worse to see after the clear has flashed.
Place your separator and dryer away from the compressor, after the air has had time to cool. If you mount them too close to the compressor, hot air may carry moisture past the system before it condenses.
That is the part many garage setups miss.
Stop 5: Regulator Placement
You need steady pressure at the gun.
A wall-mounted regulator can help control air pressure through the system, while a small regulator at the gun can fine-tune pressure right where you spray. This matters because long hoses, fittings, and filters can create pressure drop.
Set your pressure based on the spray gun and product instructions. Do not guess because “it sounded right.” Guessing is how you end up chasing texture, dry spray, or uneven coverage.
Clean air and steady pressure work together. One without the other still leaves you fighting the setup.
Stop 6: Final Filter at the Gun
A small final filter near the gun can help catch last-minute moisture or debris. It is not a replacement for a proper air line layout, but it is a useful final checkpoint.
Just remember, a gun-mounted filter has limits. If your compressor tank is wet, your line is short, and your separator is mounted too close to hot air, that little filter is doing a job it was never meant to handle alone.
Use it as backup, not the whole plan.
A Simple Garage Layout That Makes Sense
Here is a clean way to picture the system:
- Compressor tank
- Upward line from compressor
- Long air line run to cool the air
- Drop leg with drain valve
- Water separator and dryer
- Regulator
- Clean hose to spray area
- Final filter or regulator at the gun
- Spray gun
That layout gives air time to cool, gives water places to drop, and gives you pressure control before the gun.
If you are figuring out how to keep water out of a spray gun, this is the mindset: do not rely on one part. Build a system where every section helps keep the air cleaner.
Before You Spray: Quick Air System Check
A few minutes of setup can save the whole job.
Drain the Tank
Do this before spraying, not after you already see water problems.
Drain the Drop Legs
If your layout includes drains, use them. That is what they are there for.
Check the Separator
Make sure your separator bowl is empty and working properly.
Confirm Pressure at the Gun
Set pressure while air is flowing, not just while the gun is sitting still.
Use a Clean Hose
Do not use an oily, dirty shop hose for paint work. Keep a dedicated clean hose for spraying.
Watch the Weather
Humidity makes moisture control more important. Hot, humid days can push your air system harder.
Clean Air Helps the Paint Do Its Job
At Auto Paint HQ, we love the fun stuff: candy colors over metallic basecoats, Candy Pearl Over Black Kits that shine and glitter, chameleon colors that change with the angle, and clear coats that bring the whole finish to life.
But we also know a killer paint job starts before the color ever leaves the spray gun.
We supply the products builders need for full custom paint jobs and full restoration paint jobs, including primers, basecoats, clear coats, reducers, spray guns, tools and equipment, and body shop supplies. We do not offer painting services. We help you get the materials and guidance to build the finish yourself.
Every kit comes with sticks, strainers, and mixing cups for accurately mixing the products, and full page instructions are included with each product.
So set up your air right. Drain the tank. Give moisture somewhere to go. Let the gun spray clean.
Because the best color in the world still needs clean air behind it.
