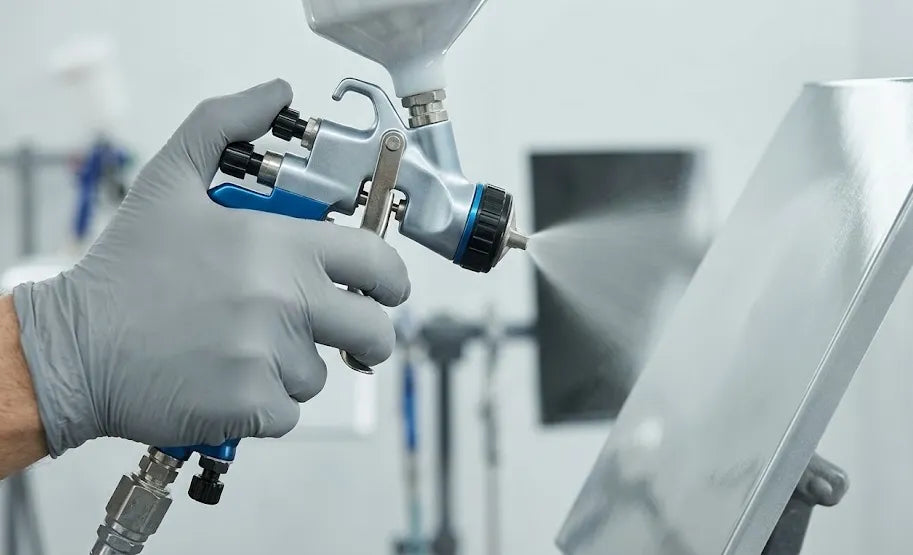

You can use the same paint, same clear coat, and same prep as another builder—and still get a completely different finish.
That difference often comes down to the spray gun.
Fluid, fan, and PSI control how the material leaves the gun, lands on the panel, and levels before it flashes. When those settings work together, the finish starts looking smooth and controlled. When they don’t, you end up chasing texture, dry spray, uneven coverage, or orange peel.
That’s why learning how to adjust automotive spray gun settings is one of the best skills you can build before spraying a full paint job.
The Gun Settings Work as a Team
A spray gun doesn’t have one magic adjustment.
The fluid control affects how much material comes out. The fan adjustment changes how wide and even the spray pattern is. Air pressure controls atomization, which affects how finely the material breaks up before it hits the surface.
Change one setting, and the others respond. Too much fluid with low air pressure can create a heavy texture. Too wide of a fan with too little material can leave dry areas. The goal is balance, not maxing out every knob.
Start With the Fluid Control
Think of the fluid knob as your material supply.
Open it too far, and the surface may get overloaded. Close it too much, and the finish can look dry or uneven. A good starting point is to make small adjustments and watch how the material lands on a test panel.
A basecoat and clear coat often need different behavior from the gun. That’s why painters adjust throughout the job instead of locking the gun once and hoping it works for every product.
Don’t Ignore the Fan Pattern
The fan pattern decides how evenly the paint spreads across the panel.
A narrow fan can create heavy stripes. A fan that’s too wide can become harder to control, especially on smaller areas. The sweet spot is a clean, even pattern that lets each pass overlap smoothly.
When people ask how to adjust automotive spray gun settings, this is one of the most overlooked parts. A clean fan pattern makes the rest of the job feel much easier.
PSI Changes the Way the Finish Feels
Air pressure affects atomization, overspray, and texture.
That’s why spray gun air pressure settings should be checked at the gun, not just at the compressor. Pressure can drop through hoses, regulators, and fittings, so the number at the wall may not match what the gun is actually using.
Too much pressure can dry the material before it lands. Too little pressure can leave it heavy and textured. Always test, adjust, and check how the surface reacts before spraying the vehicle.
Clear Coat Needs Extra Attention
A clear coat reveals everything.
Uneven overlap, poor atomization, and inconsistent distance all show up once the surface starts leveling. That’s why HVLP spray gun tuning for clear coats matters so much. A properly tuned gun helps clear flow smoothly and build depth instead of texture.
Clear usually needs a wet, controlled application, but not so heavy that it runs. The goal is enough material to level out cleanly while keeping the pass controlled from edge to edge.
Orange Peel Usually Starts Before You Notice It
Most painters notice orange peel after the clear flashes, but the cause usually starts earlier.
Poor atomization, incorrect distance, heavy application, or low pressure can all create texture. That’s why fixing orange peel paint often starts with reviewing the gun setup instead of blaming the product immediately.
If the material isn’t breaking up correctly or landing evenly, the surface won’t level the way it should.
Test Before You Spray the Vehicle
A few minutes of testing can save the whole job.
Spray a Test Pattern
Use masking paper or a test panel to check shape, density, and evenness before spraying the vehicle.
Adjust One Thing at a Time
If you change fluid, fan, and pressure all at once, you won’t know what fixed the issue. Small changes make tuning easier.
Check Pressure While Spraying
Set pressure with the trigger pulled so you’re reading actual working pressure.
Watch the Surface
The panel tells you what the gun is doing. If it looks dry, heavy, striped, or textured, adjust before moving forward.
Dial In Your Paint System with Auto Paint HQ
At Auto Paint HQ, we build paint systems for full paint jobs that work in real garages, not just perfect booth conditions. We know spray gun air pressure settings, material flow, and technique all matter—but the products underneath those adjustments matter too.
That’s why our kits include basecoat, reducer, clear coat, cups with mix sticks, and strainers so everything can be mixed accurately from the start. Full instructions are included with every product, and we also carry the tools and equipment needed to support your project from prep to final clearance.
Whether you’re working on HVLP spray gun tuning for clear coat or fixing orange peel paint before it ruins the finish, the right setup makes every adjustment more predictable.
Tune the gun.Control the flow.Let the finish lay down smooth.
